Technical Parameters
| Model | 100T | 125T | 130T | 140T | 160T | 200T |
| Motor/KW | 18.5 | 22 | 22 | 30 | 30 | 37 |
| Bin Size/cm | 100*70*35 | 110*70*40 | 120*80*45 | 130*100*50 | 160*120*50 | 200*180*90 |
| Steel plate thickness/mm |
20+12 | 20+12+25 | 20+12+25 | 20+30 | 20+30 | 20+30+40 |
| Bale Size/mm | 200*200*400 -500 |
250*250*500 -600 |
300*300*500 -600 |
250*250*600 -700 |
300*300*600 -700 |
500*500*600 -700 |
| Machine Size /mm |
2600*1800*1400 | 2800*1800*1400 | 3000*2000*1500 | 3300*2450*1800 | 3800*2850*1800 | 4900*3500*2800 |
| Downward pressure cylinder diameter (mm) |
140 | 140 | 140 | 180 | 180 | 200*2 |
| Rear push cylinder diameter (mm) |
200 | 220 | 220 | 245 | 245 | 230*2 |
| Side-push cylinder bore diameter (mm) |
220 | 250 | 250 | 300*1 | 300*2 | 350*2 |
| Diameter of the cylinder for removing the packagemm(mm) |
90 | 90 | 90 | 90 | 90 | 160 |
| Machine Weight/TONS |
2.6 | 2.9 | 4.5 | 6.2 | 8 | 16 |
| Cutting tools | Optional | Optional | Optional | Optional | Standard equipment |
Standard equipment |
| Cooling method | Optional | Optional | Optional | Optional | Air-cooled | Air-cooled |
| Model | 260T (Remote-controlled) |
315T (Remote- controlled) |
400T (Remote- controlled) |
Hydraulic Lift Gate Metal Baler |
Large-Scale Hydraulic Top-Lifting Door Metal Baler |
Car Body Crushing Machine |
| Motor/KW | 30*2 | 37*2 | 37*3 | 30 | 55*2 | 30*2 |
| Bin Size/cm | 250*180*100 | 250*200*100 | 300*250*100 | 1300*800*700 | 3600*2000*1100 | 5300*2500 |
| Steel plate thickness/mm |
20+30+40 | 20+30+40 | 20+30+40+60 | 12+18+40 | 20+30+40+60 | 20+30+40 |
| Bale Size/mm | 500*500*600 -700 |
500*500*800 -1000 |
500*500*800 -1000 |
Adjustable*800*500 | 1250*2000*1100 | //// |
| Machine Size /mm |
5800*3600*2800 | 5800*3800*2800 | 6700*5000*2800 | 3200*1500*2000 | 11500*3200*3500 | //// |
| Downward pressure cylinder diameter (mm) |
220*2 | 220*2 | 250*2 | 180 | 275*2 | 350*2 |
| Rear push cylinder diameter (mm) |
250*2 | 250*2 | 275*2 | 245 | 325*2 | //// |
| Side-push cylinder bore diameter (mm) |
400*2 | 450*2 | 510*2 | /// | /// | /// |
| Diameter of the cylinder for removing the packagemm(mm) |
160 | /// | /// | Hydraulic Lift Gate 160*2 |
Hydraulic Lift Gate 200*2 |
/// |
| Machine Weight/TONS |
27 | 37 | 48 | 6 | 45 | 26 |
| Cutting tools | Standard equipment |
Standard equipment |
Standard equipment |
Optional | Standard equipment | /// |
| Cooling method | Water-cooled | Water-cooled / Cooling tower |
Water-cooled / Cooling tower |
Optional | Water-cooled / Cooling tower | //// |

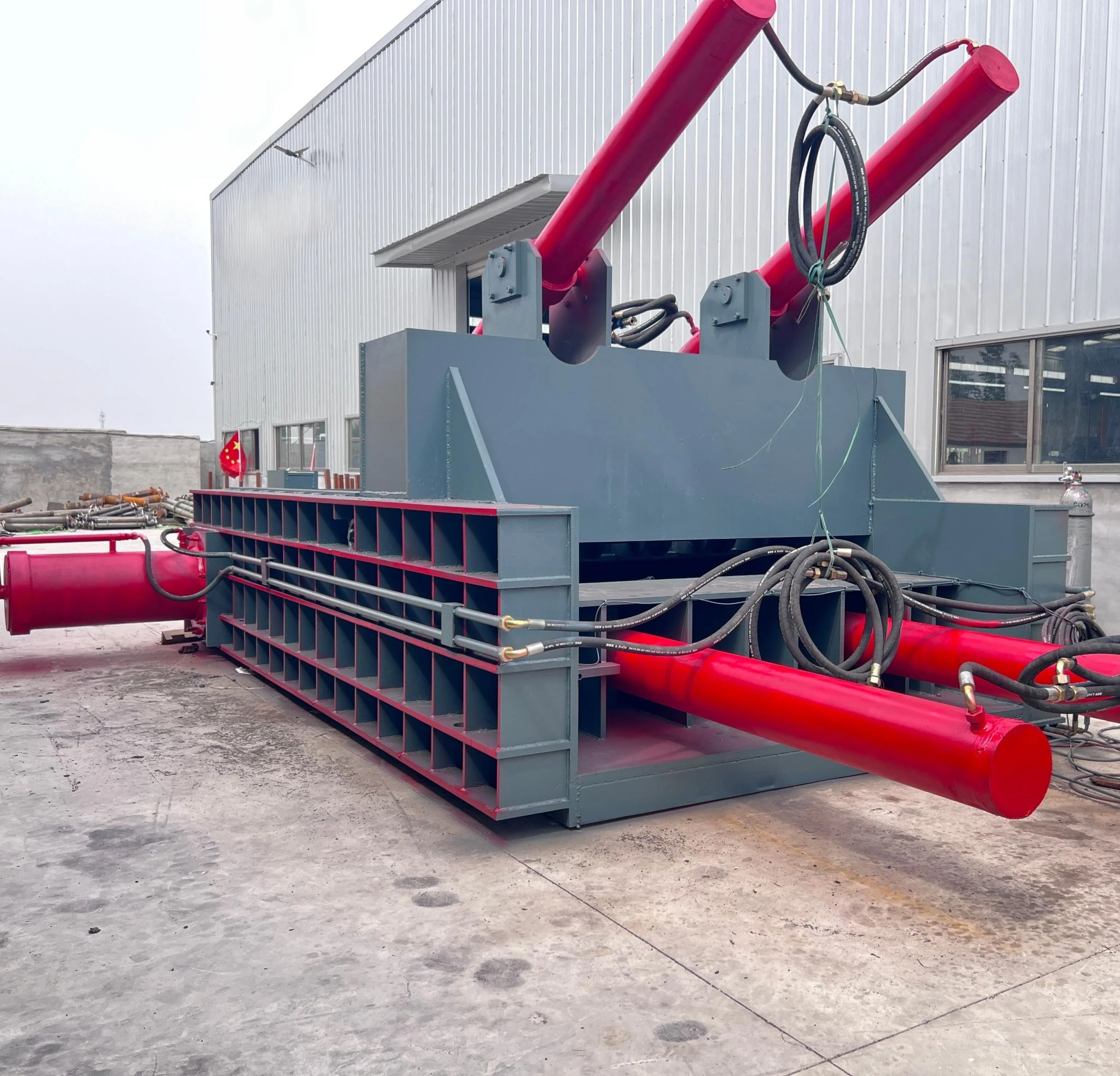

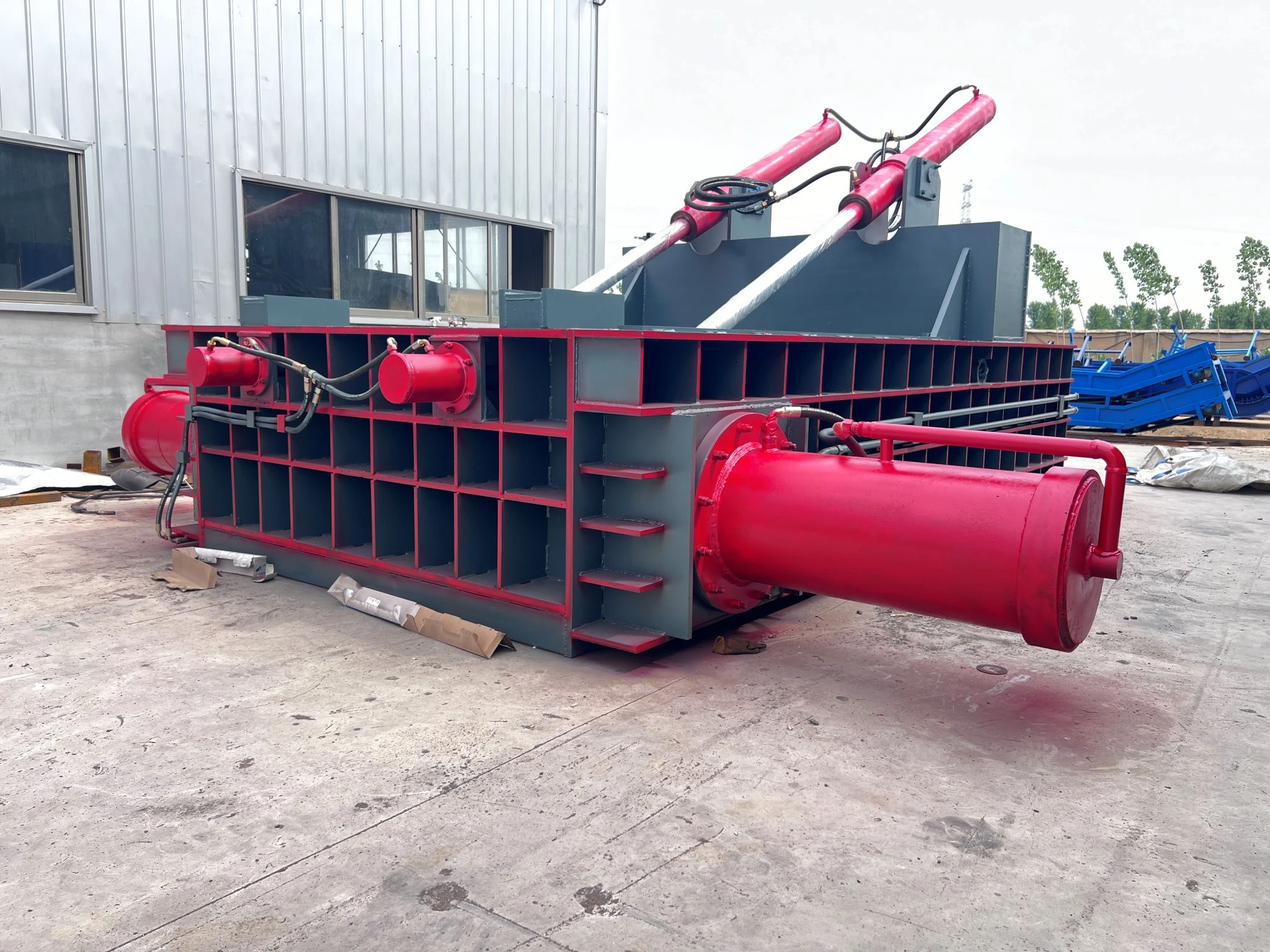

Product Overview
Our 400T hydraulic metal baler is a professional-grade recycling machine for heavy scrap metal materials, with super strong compression pressure, ultra-high density bales and maximum working efficiency. It is equipped with large feeding opening for easy feeding and convenient bale ejection, greatly improving productivity.
Built with ultra-strong thick steel plate body, this baling machine is super sturdy, durable and reliable for long-term heavy-duty industrial operation. It can highly reduce waste volume, save storage and transportation cost, and maximize the recycling value of metal materials. It is the top choice for large metal recycling centers, smelting plants and heavy industrial factories.
Key Features
- Super strong 400-ton compression pressure
- Ultra-high compression density & compact bales
- High working efficiency & large processing capacity
- Large feeding opening for easy and fast feeding
- Convenient feeding & bale ejection

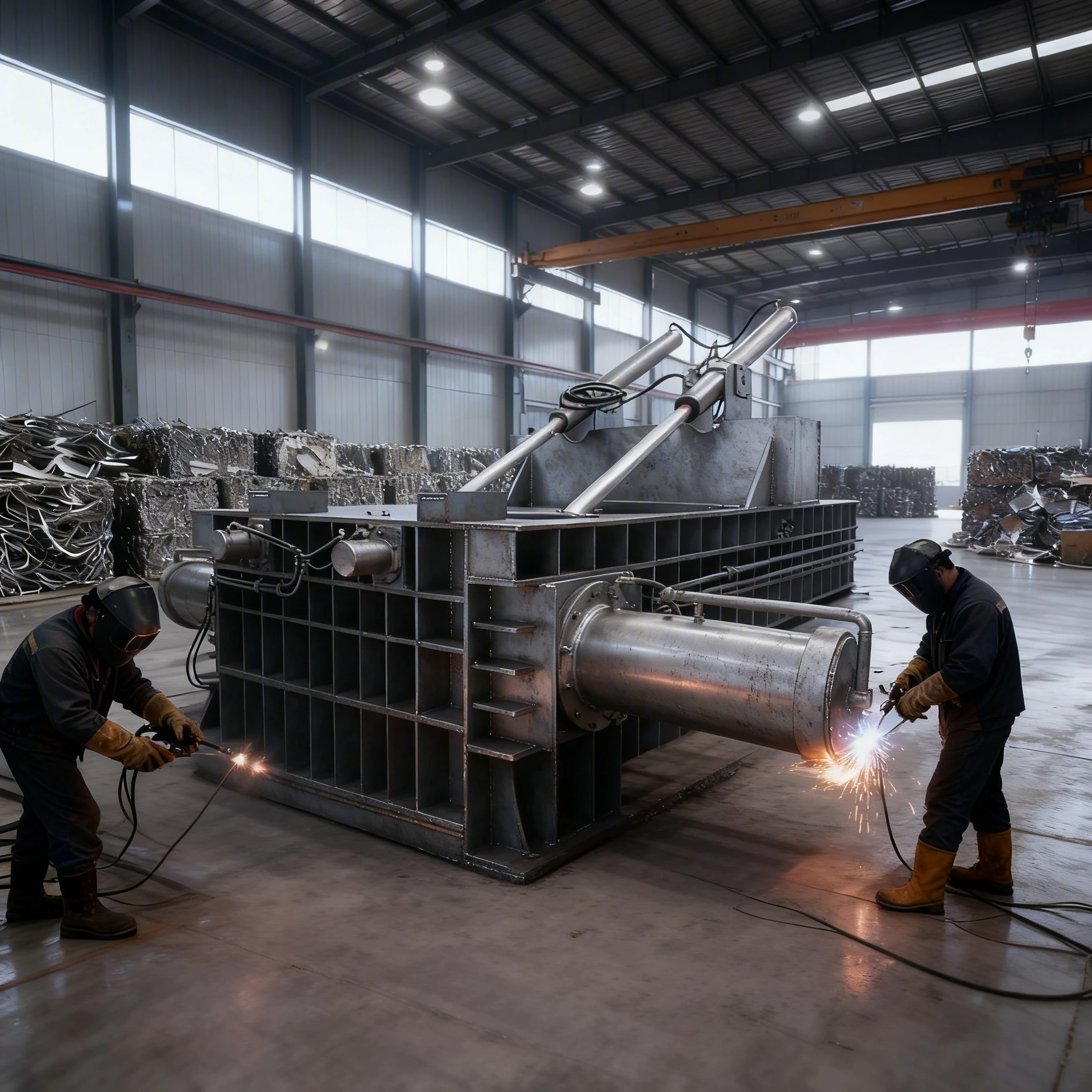

- Ultra-strong thick steel body, heavy-duty and unbreakable

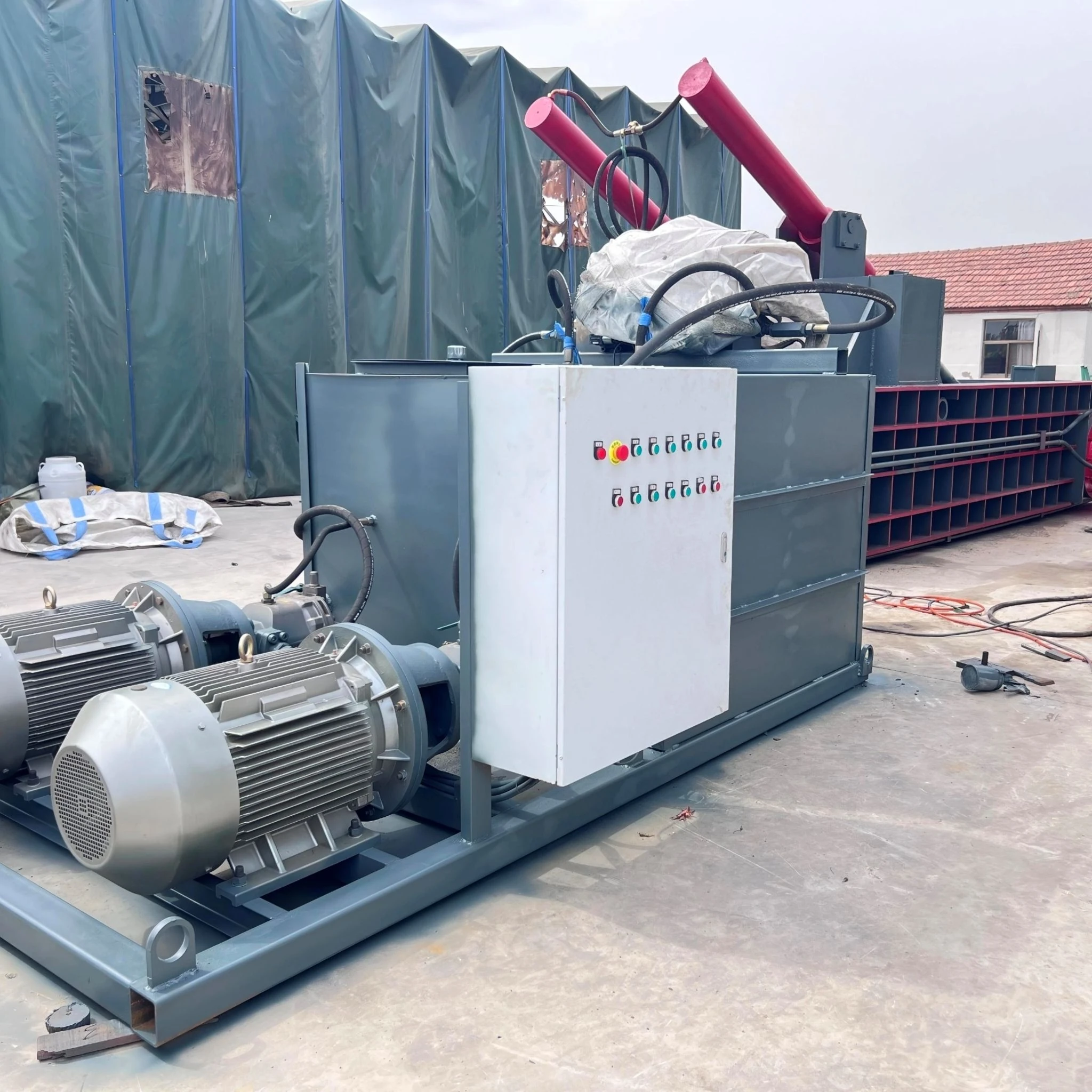

- Stable hydraulic system for long service life
- Safe, reliable & low failure rate
Application Materials
This 400T hydraulic metal baler is designed for:
- Heavy scrap metal, thick steel sheets, iron blocks
- Bulky metal waste, industrial metal leftovers
- Aluminum profiles, thick aluminum materials
- Copper materials, smelting plant metal waste
- Various heavy-duty industrial metal scraps
Why Choose Our 400T Hydraulic Metal Baler for Waste/Recycling?
We are a leading manufacturer of heavy duty industrial metal balers with years of R&D and production experience. Our 400T metal briquetting machine is engineered for super strong pressure, high efficiency and ultra durability.
All machines are strictly tested and certified before delivery. We provide factory direct price, customized solutions, global delivery and professional after-sales service for worldwide customers.
FAQ
Q: Is 400T pressure strong enough for heavy metal?
A: Yes, super strong 400-ton pressure can compress heavy metal into ultra-high density bales.
Q: Is it suitable for large recycling centers?
A: Yes, it is specially designed for heavy-duty and large-scale industrial metal recycling.
Q: How about the durability?
A: Ultra-strong thick full steel body ensures extremely long service life and stable performance.
Contact Us
If you are looking for a top-level 400T hydraulic metal baler with super strong pressure and high efficiency, welcome to send us your inquiry for professional solution and best price.
