| Model | 100T | 125T | 130T | 140T | 160T | 200T |
| Motor/KW | 18.5 | 22 | 22 | 30 | 30 | 37 |
| Bin Size/cm | 100*70*35 | 110*70*40 | 120*80*45 | 130*100*50 | 160*120*50 | 200*180*90 |
| Steel plate thickness/mm |
20+12 | 20+12+25 | 20+12+25 | 20+30 | 20+30 | 20+30+40 |
| Bale Size/mm | 200*200*400 -500 |
250*250*500 -600 |
300*300*500 -600 |
250*250*600 -700 |
300*300*600 -700 |
500*500*600 -700 |
| Machine Size /mm |
2600*1800*1400 | 2800*1800*1400 | 3000*2000*1500 | 3300*2450*1800 | 3800*2850*1800 | 4900*3500*2800 |
| Downward pressure cylinder diameter (mm) |
140 | 140 | 140 | 180 | 180 | 200*2 |
| Rear push cylinder diameter (mm) |
200 | 220 | 220 | 245 | 245 | 230*2 |
| Side-push cylinder bore diameter (mm) |
220 | 250 | 250 | 300*1 | 300*2 | 350*2 |
| Diameter of the cylinder for removing the packagemm(mm) |
90 | 90 | 90 | 90 | 90 | 160 |
| Machine Weight/TONS |
2.6 | 2.9 | 4.5 | 6.2 | 8 | 16 |
| Cutting tools | Optional | Optional | Optional | Optional | Standard equipment |
Standard equipment |
| Cooling method | Optional | Optional | Optional | Optional | Air-cooled | Air-cooled |
| Model | 260T (Remote-controlled) |
315T (Remote- controlled) |
400T (Remote- controlled) |
Hydraulic Lift Gate Metal Baler |
Large-Scale Hydraulic Top-Lifting Door Metal Baler |
Car Body Crushing Machine |
| Motor/KW | 30*2 | 37*2 | 37*3 | 30 | 55*2 | 30*2 |
| Bin Size/cm | 250*180*100 | 250*200*100 | 300*250*100 | 1300*800*700 | 3600*2000*1100 | 5300*2500 |
| Steel plate thickness/mm |
20+30+40 | 20+30+40 | 20+30+40+60 | 12+18+40 | 20+30+40+60 | 20+30+40 |
| Bale Size/mm | 500*500*600 -700 |
500*500*800 -1000 |
500*500*800 -1000 |
Adjustable*800*500 | 1250*2000*1100 | //// |
| Machine Size /mm |
5800*3600*2800 | 5800*3800*2800 | 6700*5000*2800 | 3200*1500*2000 | 11500*3200*3500 | //// |
| Downward pressure cylinder diameter (mm) |
220*2 | 220*2 | 250*2 | 180 | 275*2 | 350*2 |
| Rear push cylinder diameter (mm) |
250*2 | 250*2 | 275*2 | 245 | 325*2 | //// |
| Side-push cylinder bore diameter (mm) |
400*2 | 450*2 | 510*2 | /// | /// | /// |
| Diameter of the cylinder for removing the packagemm(mm) |
160 | /// | /// | Hydraulic Lift Gate 160*2 |
Hydraulic Lift Gate 200*2 |
/// |
| Machine Weight/TONS |
27 | 37 | 48 | 6 | 45 | 26 |
| Cutting tools | Standard equipment |
Standard equipment |
Standard equipment |
Optional | Standard equipment | /// |
| Cooling method | Water-cooled | Water-cooled / Cooling tower |
Water-cooled / Cooling tower |
Optional | Water-cooled / Cooling tower | //// |
Product Overview

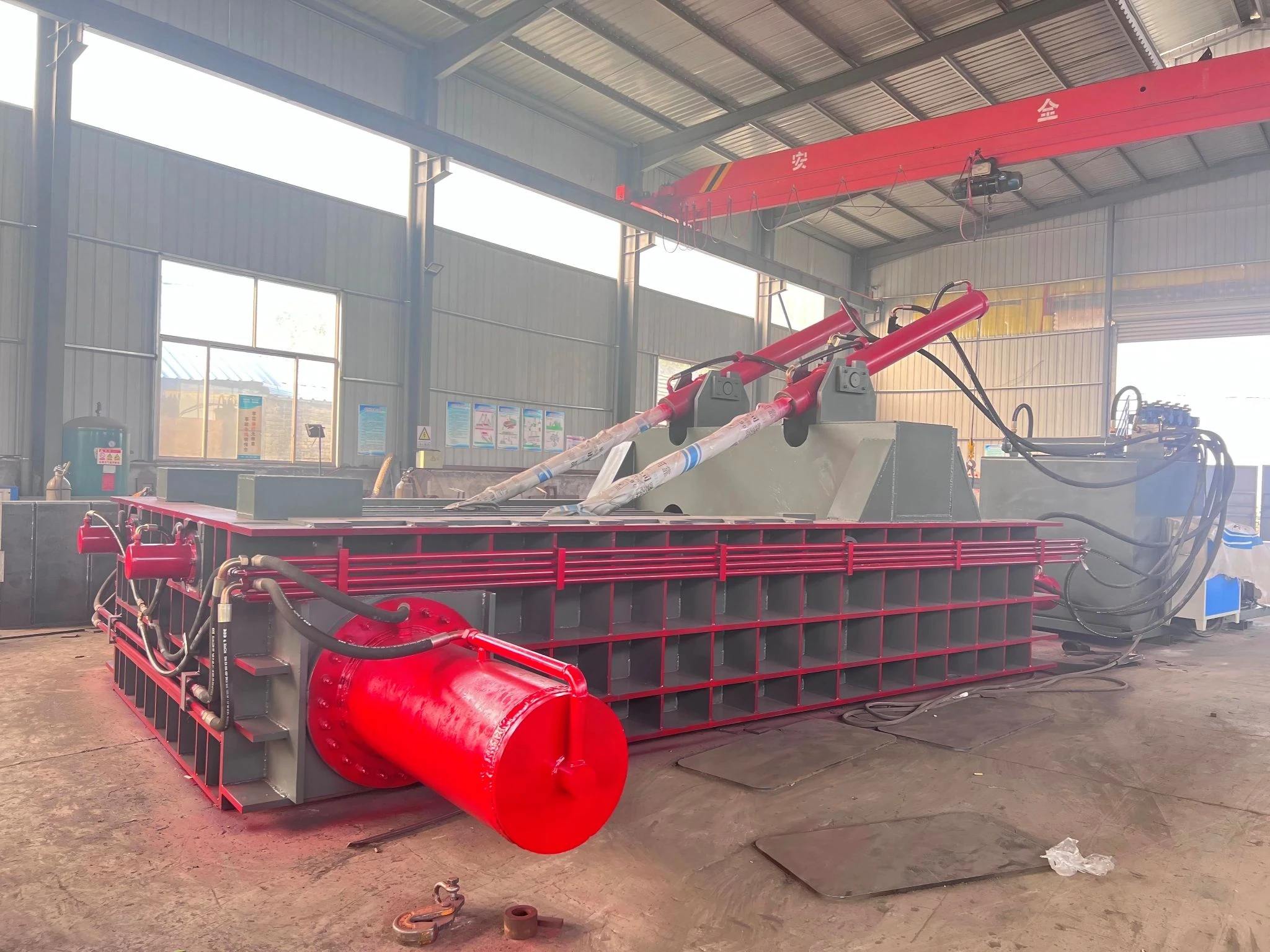

Our 315T heavy duty hydraulic metal baler provides super strong compression pressure, high-density bales and high working efficiency for heavy-duty scrap metal recycling. It is designed with large feeding opening for easy material loading and fast bale output, making operation more efficient and labor-saving.
With ultra-strong all steel plate body, this metal briquetting machine is extremely sturdy, durable and reliable for long-time heavy-duty working. It can greatly reduce waste volume, save logistics cost and improve metal recycling value. It is the ideal equipment for medium & large metal recycling centers and industrial factories.
Key Features
- Super strong compression pressure for ultra-high density bales
- High compression ratio & high working efficiency
- Extra large feeding opening for easy and fast feeding
- Convenient feeding & bale ejection, labor-saving
- Ultra-strong all steel body, heavy-duty and durable
- Stable & powerful hydraulic system
- Long service life & low maintenance cost
- Safe design for continuous industrial operation
Technical Parameters
- Model: 315T Heavy Duty hydraulic metal baler
- Compression Force: 315 Tons
- Body Material: Ultra-strong all steel plate
- Application: Heavy scrap metal, iron, steel, aluminum, copper
- Feeding Opening: Extra large size
- Motor Power: Customizable
- Voltage: 380V/415V/440V (Customizable)
- Warranty: 12 Months
Application Materials
This 315T heavy duty hydraulic metal baler is widely used for:
- Heavy scrap metal, steel sheets, iron blocks
- Aluminum profiles, thick aluminum sheets, aluminum cans
- Copper materials, copper wires, copper sheets
- Bulk industrial metal waste and leftovers
Why Choose Our 315T Heavy Duty Hydraulic Metal Baler for Waste/Recycling?
As a professional metal baler manufacturer, we provide high-quality heavy-duty machines with strong pressure, high efficiency and long durability. All machines are fully tested before shipment to ensure stable performance.
We offer factory direct price, customized solutions, fast global delivery and professional after-sales support to help you achieve efficient metal recycling.
FAQ
Q: What materials can this 315T metal baler compress?
A: It is ideal for heavy scrap metal, iron, steel, aluminum, copper and various industrial metal waste.
Q: Is the feeding opening large?
A: Yes, extra large feeding opening makes feeding easier and more efficient.
Q: Is it suitable for heavy-duty industrial use?
A: Yes, ultra-strong steel body and strong pressure make it perfect for long-term heavy work.
Contact Us
If you need a high-performance 315T heavy duty hydraulic metal baler, please contact us now for detailed information and best quotation.
