| Model | 100T | 125T | 130T | 140T | 160T | 200T |
| Motor/KW | 18.5 | 22 | 22 | 30 | 30 | 37 |
| Bin Size/cm | 100*70*35 | 110*70*40 | 120*80*45 | 130*100*50 | 160*120*50 | 200*180*90 |
| Steel plate thickness/mm |
20+12 | 20+12+25 | 20+12+25 | 20+30 | 20+30 | 20+30+40 |
| Bale Size/mm | 200*200*400 -500 |
250*250*500 -600 |
300*300*500 -600 |
250*250*600 -700 |
300*300*600 -700 |
500*500*600 -700 |
| Machine Size /mm |
2600*1800*1400 | 2800*1800*1400 | 3000*2000*1500 | 3300*2450*1800 | 3800*2850*1800 | 4900*3500*2800 |
| Downward pressure cylinder diameter (mm) |
140 | 140 | 140 | 180 | 180 | 200*2 |
| Rear push cylinder diameter (mm) |
200 | 220 | 220 | 245 | 245 | 230*2 |
| Side-push cylinder bore diameter (mm) |
220 | 250 | 250 | 300*1 | 300*2 | 350*2 |
| Diameter of the cylinder for removing the packagemm(mm) |
90 | 90 | 90 | 90 | 90 | 160 |
| Machine Weight/TONS |
2.6 | 2.9 | 4.5 | 6.2 | 8 | 16 |
| Cutting tools | Optional | Optional | Optional | Optional | Standard equipment |
Standard equipment |
| Cooling method | Optional | Optional | Optional | Optional | Air-cooled | Air-cooled |
| Model | 260T (Remote-controlled) |
315T (Remote- controlled) |
400T (Remote- controlled) |
Hydraulic Lift Gate Metal Baler |
Large-Scale Hydraulic Top-Lifting Door Metal Baler |
Car Body Crushing Machine |
| Motor/KW | 30*2 | 37*2 | 37*3 | 30 | 55*2 | 30*2 |
| Bin Size/cm | 250*180*100 | 250*200*100 | 300*250*100 | 1300*800*700 | 3600*2000*1100 | 5300*2500 |
| Steel plate thickness/mm |
20+30+40 | 20+30+40 | 20+30+40+60 | 12+18+40 | 20+30+40+60 | 20+30+40 |
| Bale Size/mm | 500*500*600 -700 |
500*500*800 -1000 |
500*500*800 -1000 |
Adjustable*800*500 | 1250*2000*1100 | //// |
| Machine Size /mm |
5800*3600*2800 | 5800*3800*2800 | 6700*5000*2800 | 3200*1500*2000 | 11500*3200*3500 | //// |
| Downward pressure cylinder diameter (mm) |
220*2 | 220*2 | 250*2 | 180 | 275*2 | 350*2 |
| Rear push cylinder diameter (mm) |
250*2 | 250*2 | 275*2 | 245 | 325*2 | //// |
| Side-push cylinder bore diameter (mm) |
400*2 | 450*2 | 510*2 | /// | /// | /// |
| Diameter of the cylinder for removing the packagemm(mm) |
160 | /// | /// | Hydraulic Lift Gate 160*2 |
Hydraulic Lift Gate 200*2 |
/// |
| Machine Weight/TONS |
27 | 37 | 48 | 6 | 45 | 26 |
| Cutting tools | Standard equipment |
Standard equipment |
Standard equipment |
Optional | Standard equipment | /// |
| Cooling method | Water-cooled | Water-cooled / Cooling tower |
Water-cooled / Cooling tower |
Optional | Water-cooled / Cooling tower | //// |
Product Overview

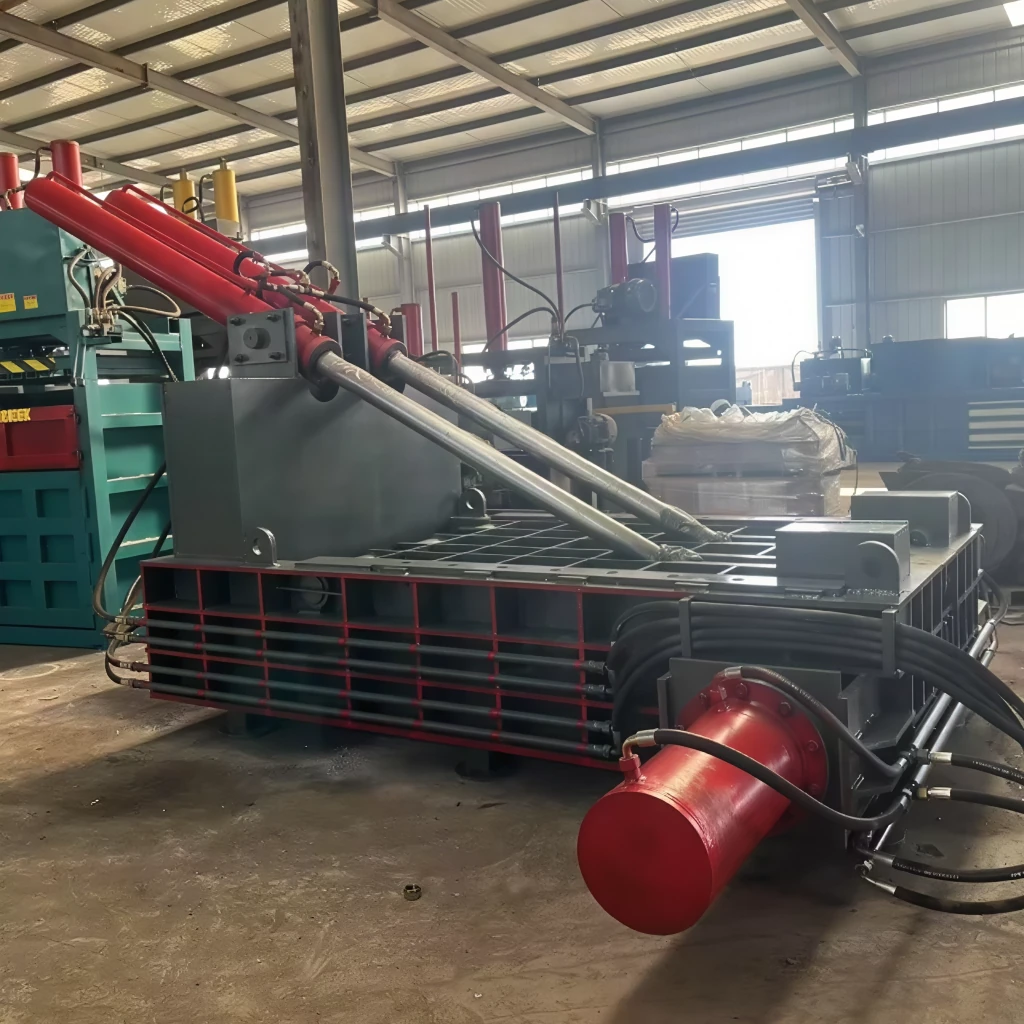

Our 260T Scrap metal hydraulic baler is specially designed for compressing all kinds of scrap metal materials with strong hydraulic pressure, high density bales and high working efficiency. It features a large feeding opening for easy material loading and simple bale ejection, greatly improving operation convenience.
Built with ultra-strong full steel plate body, this industrial metal briquetting machine is sturdy, durable and reliable for long-term heavy-duty working. It can highly reduce waste volume, save storage and transportation cost, and greatly improve metal recycling efficiency. It is widely used in metal recycling stations, smelting plants and industrial waste treatment centers.
Key Features
- Strong compression pressure for high-density metal bales
- High compression ratio & high working efficiency
- Large feeding opening for easy feeding and operation
- Simple & convenient feeding and bale ejection
- Ultra-strong full steel plate body, sturdy and durable
- Stable hydraulic system for long service life
- Low failure rate & easy maintenance
- Safe and reliable for heavy-duty industrial use
Technical Parameters
- Model: 260T Scrap metal hydraulic baler
- Compression Force: 260 Tons
- Body Material: Ultra-strong all steel plate
- Application: Scrap metal, iron, aluminum, copper, metal sheets
- Feeding Opening: Large size
- Motor Power: Customizable
- Voltage: 380V/415V/440V (Customizable)
- Warranty: 12 Months
Application Materials
This 260T Scrap metal hydraulic baler is ideal for:
- Scrap metal, iron sheets, steel scraps
- Aluminum sheets, aluminum profiles, aluminum cans
- Copper wires, copper sheets, metal shavings
- Various industrial metal waste and leftovers
Why Choose Our 260T Scrap Metal Hydraulic Baler for Waste/Recycling?
We are a professional manufacturer of heavy duty metal balers with rich export experience. Our 260T metal baler is made of high-strength steel, with strict quality inspection and full testing before delivery.
It provides strong pressure, high efficiency and durable performance to meet heavy-duty metal recycling demands. We offer factory direct price, customized solutions and professional global after-sales service.
FAQ
Q: Is the compression pressure strong enough?
A: Yes, 260 tons strong pressure ensures high-density metal bales.
Q: Is feeding and bale ejection easy?
A: Yes, large feeding opening and simple structure make operation very convenient.
Q: Is the machine durable?
A: Yes, ultra-strong full steel body ensures long service life and stable performance.
Contact Us
If you are looking for a 260T Scrap metal hydraulic baler with high efficiency and strong pressure, welcome to send us an inquiry for the best quotation and professional solution.
