Technical Parameters:
| Fully automatic horizontal hydraulic baler | |||
| Model | 140T | 160T | 180T |
| Motor/KW | 30KW | 45KW | 45KW |
| Hydraulic cylinder bore | 250mm | 275mm | 300mm |
| Feed opening dimensions Length × Width / mm |
1600*1100mm | 1800*1100mm | 1800*1100mm |
| Bale Size (Length x Width x Height)/mm |
1800*1100*850mm | 2000*1100*1250mm | 2000*1100*1250mm |
| Steel plate thickness | 12mm | 14mm | 16mm |
| Bale Weight /KG/Waste paper |
600-700KG | 800-900KG | 1000-1300KG |
| Machine Size (Length × Width × Height / mm) |
8900*1600*2500mm | 9100*1600*2500mm | 9100*1600*2500mm |
| Machine Weight/TONS |
7 Tons | 10 Tons | 18 Tons |
| Hydraulic system | High and low speed 3 forward 2 backward |
High and low speed 3 forward 2 backward |
High-speed cartridge valve |
| Control method | PLC automatic + remote control | PLC automatic + remote control | PLC automatic + remote control |
| Conveyor Belt (Chain hinge) |
1.5*7m | 1.5*7m | 1.5*7m |

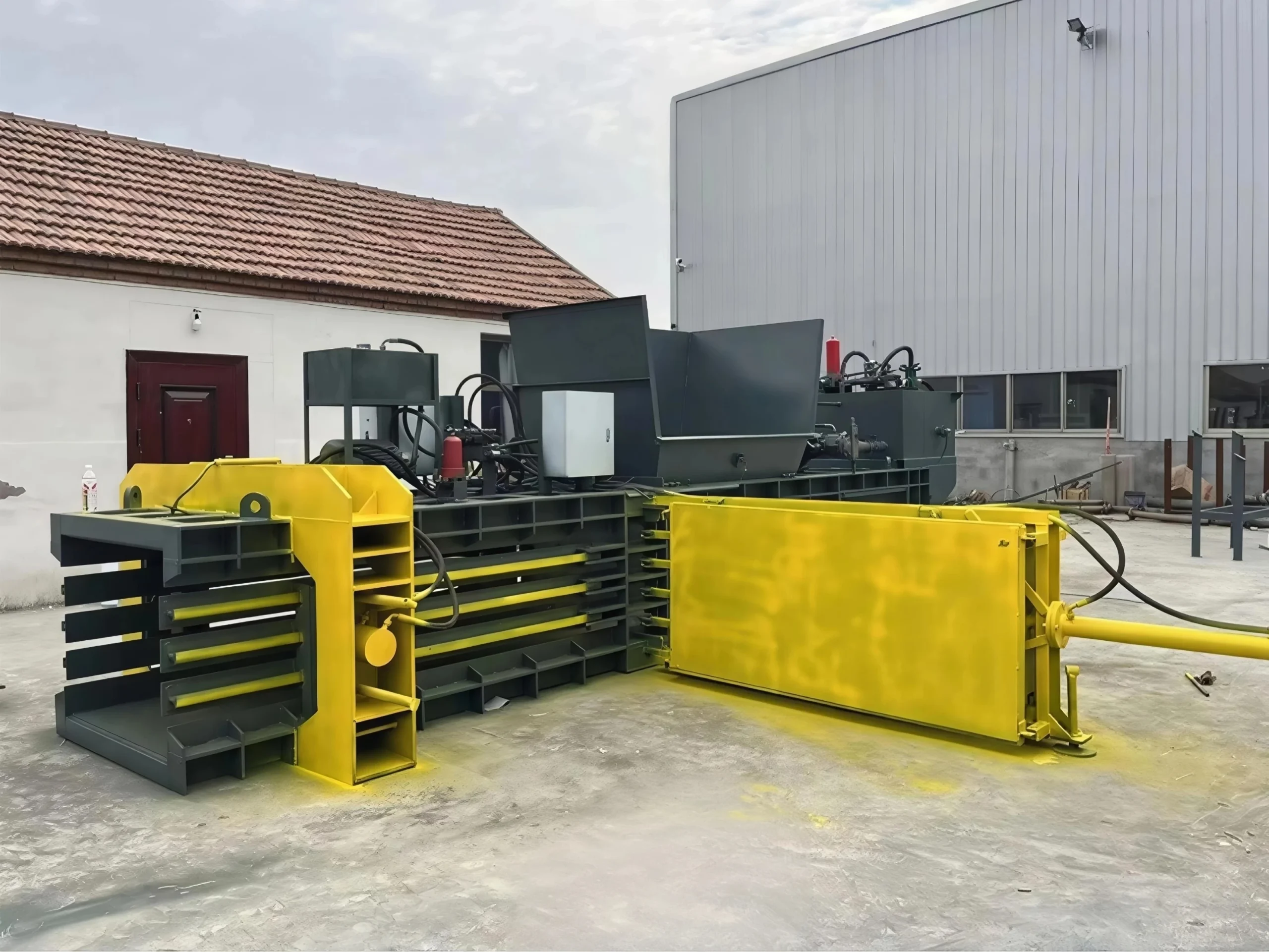

Product Overview:
Our fully automatic horizontal hydraulic baler provides ultra high efficiency, high speed and fully automatic operation including auto feeding, compressing, baling and strapping. It maximizes productivity, saves 100% labor cost and delivers large output for waste carton and paper recycling. This stable and reliable machine is the most efficient solution for large recycling stations.
Key Features:
- Full automatic & auto strapping – no manual work
- High speed & high efficiency
- Large output & continuous working
- Labor saving & cost effective
- Stable & reliable performance
- Easy control & low maintenance
- Heavy duty structure for long life
Application Materials:
This fully automatic horizontal baler is widely used for:
Waste cartons and corrugated cardboard
Waste paper, printing paper, packaging paper
pet,aluminum cans
Cardboard boxes and paper products
thick plastic sheets, scrap metal, iron sheets, aluminum profiles, industrial bulky waste
Other recyclable materials
Why Choose Our Fully Automatic Horizontal Hydraulic Baler for Waste/Recycling?
As an experienced manufacturer and exporter, we provide high-quality automatic horizontal hydraulic balers with reliable performance. Our machines feature high automation, stable operation and long service life.
We supply top quality automatic hydraulic balers with factory price, fast delivery and professional service. Our machines are proven efficient and reliable by global customers.
FAQ
Q: Is this hydraulic baling machine fully automatic?
A: Yes, it supports automatic compression and automatic strapping.
Q: Is it high efficiency?
A: Yes, it provides high speed and large output for mass production.
Q: What is the main application?
A: It is mainly used for recycling waste cartons, cardboard,pet and paper materials.
Q: Do you provide overseas after-sales service?
A: Yes, we provide technical guidance and after-sales support for global customers.
Contact Us for Automatic Baler
For more details about our fully automatic horizontal hydraulic baler, please contact us now to get a professional solution and best price.
