Technical Parameters:
| Fully automatic horizontal hydraulic baler | |||
| Model | 140T | 160T | 180T |
| Motor/KW | 30KW | 45KW | 45KW |
| Hydraulic cylinder bore | 250mm | 275mm | 300mm |
| Feed opening dimensions Length × Width / mm |
1600*1100mm | 1800*1100mm | 1800*1100mm |
| Bale Size (Length x Width x Height)/mm |
1800*1100*850mm | 2000*1100*1250mm | 2000*1100*1250mm |
| Steel plate thickness | 12mm | 14mm | 16mm |
| Bale Weight /KG/Waste paper |
600-700KG | 800-900KG | 1000-1300KG |
| Machine Size (Length × Width × Height / mm) |
8900*1600*2500mm | 9100*1600*2500mm | 9100*1600*2500mm |
| Machine Weight/TONS |
7 Tons | 10 Tons | 18 Tons |
| Hydraulic system | High and low speed 3 forward 2 backward |
High and low speed 3 forward 2 backward |
High-speed cartridge valve |
| Control method | PLC automatic + remote control | PLC automatic + remote control | PLC automatic + remote control |
| Conveyor Belt (Chain hinge) |
1.5*7m | 1.5*7m | 1.5*7m |

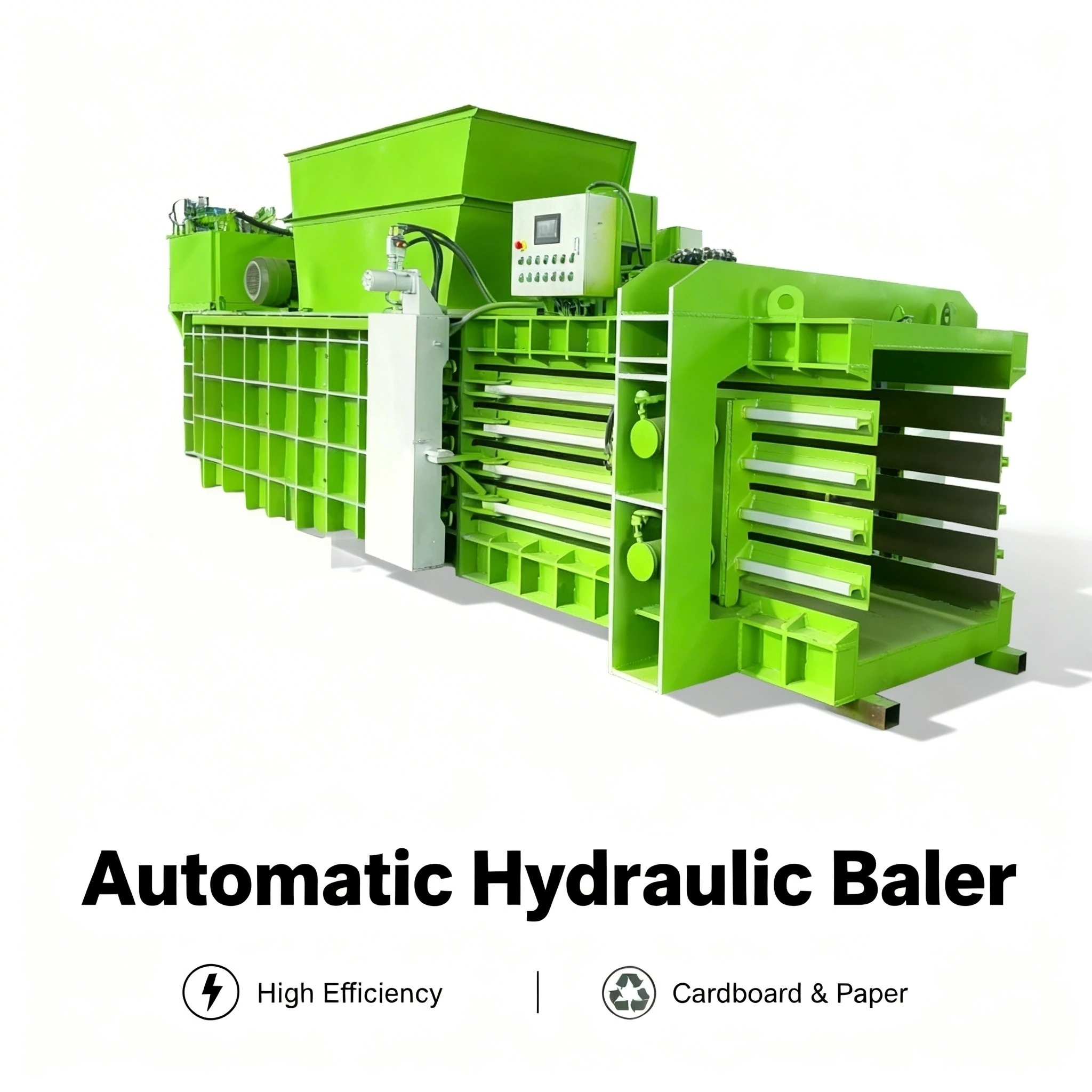

Product Overview:

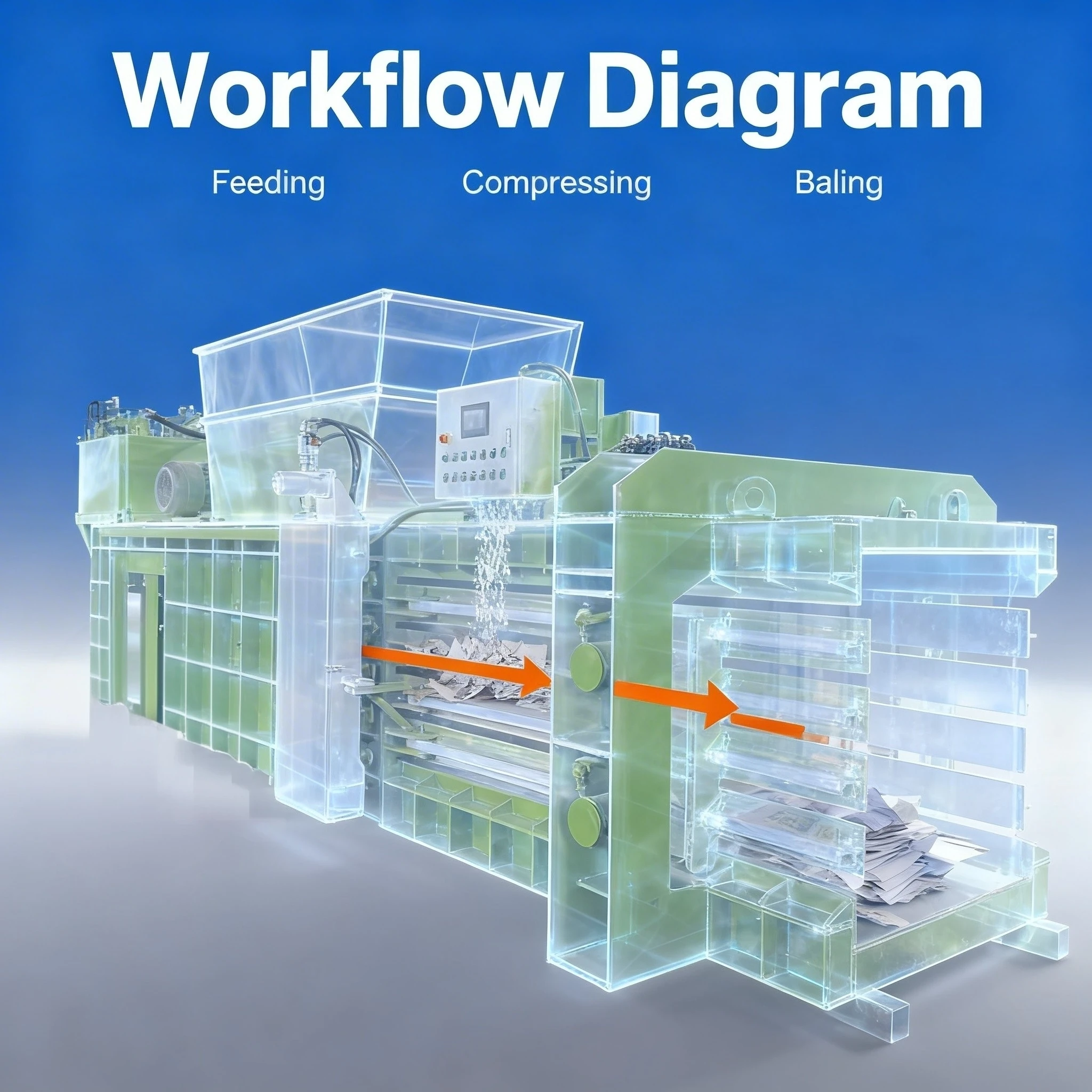

Our Automatic Horizontal Hydraulic Waste Baler realizes automatic feeding, compressing, baling and strapping without manual operation in the whole process. It is specially designed for large-scale recycling of waste cartons, cardboard, corrugated paper, and paper products.
With high working efficiency and large processing capacity, this machine greatly reduces labor cost and improves recycling efficiency. It is the ideal equipment for paper recycling stations, packaging factories, printing plants and large logistics centers.

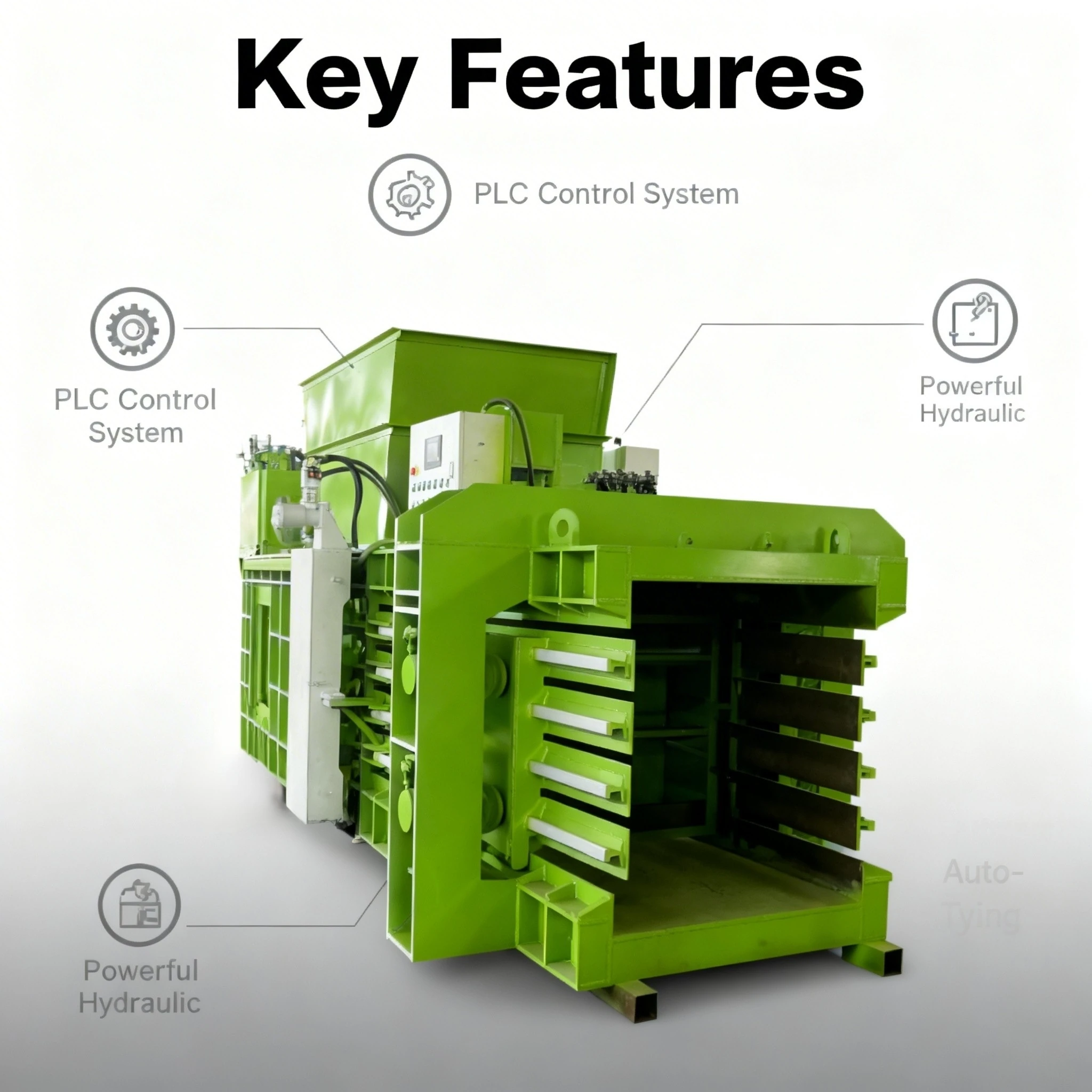

Key Features:
- Full automatic operation: auto compress & auto strapping
- High efficiency and large output
- Horizontal structure for continuous working
- Stable hydraulic system with low noise
- PLC control system, easy to operate
- Labor-saving and high automation
- Durable structure for long-term use
Application Materials:
This automatic horizontal waste baler is widely used for:
Waste cartons and corrugated cardboard
Waste paper, printing paper, packaging paper
pet,aluminum cans
Cardboard boxes and paper products
thick plastic sheets, scrap metal, iron sheets, aluminum profiles, industrial bulky waste
Other recyclable materials
Why Choose Our Automatic Horizontal Hydraulic Waste Baler for Waste/Recycling?
As an experienced manufacturer and exporter, we provide high-quality automatic horizontal hydraulic balers with reliable performance. Our machines feature high automation, stable operation and long service life. We offer factory direct price, fast delivery and professional after-sales service worldwide.
FAQ
Q: Is this hydraulic baling machine fully automatic?
A: Yes, it supports automatic compression and automatic strapping.
Q: Is it high efficiency?
A: Yes, it provides high speed and large output for mass production.
Q: What is the main application?
A: It is mainly used for recycling waste cartons, cardboard,pet and paper materials.
Q: Do you provide overseas after-sales service?
A: Yes, we provide technical guidance and after-sales support for global customers.
Contact Us for Automatic Waste Baler
For more details about our automatic horizontal hydraulic baler, please contact us now to get a professional solution and best price.
