Technical Parameters:
| Model | Motor/KW | Hydraulic cylinder bore Oil cylinder stroke |
Door Locking Mechanism | Bin Dimensions (Length × Width / mm) |
Weight of bundled scrap metal | Machine Dimensions (Length × Width × Height / mm) |
Weight/TONS |
| 100tons | 22KW | 200*2*1200 | Manual door lock | 1200*800 | 400KG | 1900*1200*3600 | 3T |
| 120tons | 22KW | 200*2*1200 | Hydraulic door lock | 1200*800 | 500KG | 1900*1200*3600 | 3T |
| 160tons | 30KW | 200*2*1400 | Hydraulic door lock | 1400*1100 | 600KG | 2100*1500*3800 | 4T |
| 200tons | 30KW | 230*2*1400 | Hydraulic Lift Gate | 1600*1100 | 800KG | 2300*1500*3800 | 5.5T |
| 250tons | 30KW+15KW | 250*2*1400 | Hydraulic Lift Gate | 1600*1100 | 1000KG | 2500*1500*3800 | 6.2T |
| 260tons | 37KW+15KW | 275*2*1400 | Hydraulic Lift Gate | 1800*1100 | 1000KG | 2500*1500*3800 | 7.1T |
| 300tons | 37KW+22KW | 275*3*1500 | Hydraulic Lift Gate | 2000*1100 | 1600KG | 2900*1500*4000 | 9T |
| 315tons | 37KW+22KW | 275*3*1500 | Hydraulic Lift Gate | 2200*1100 | 1600KG | 2900*1500*4000 | 11T |
| 350tons | 37KW+22KW | 300*3*1500 | Hydraulic Lift Gate | 2200*1100 | 1600KG | 2900*1500*4000 | 13T |

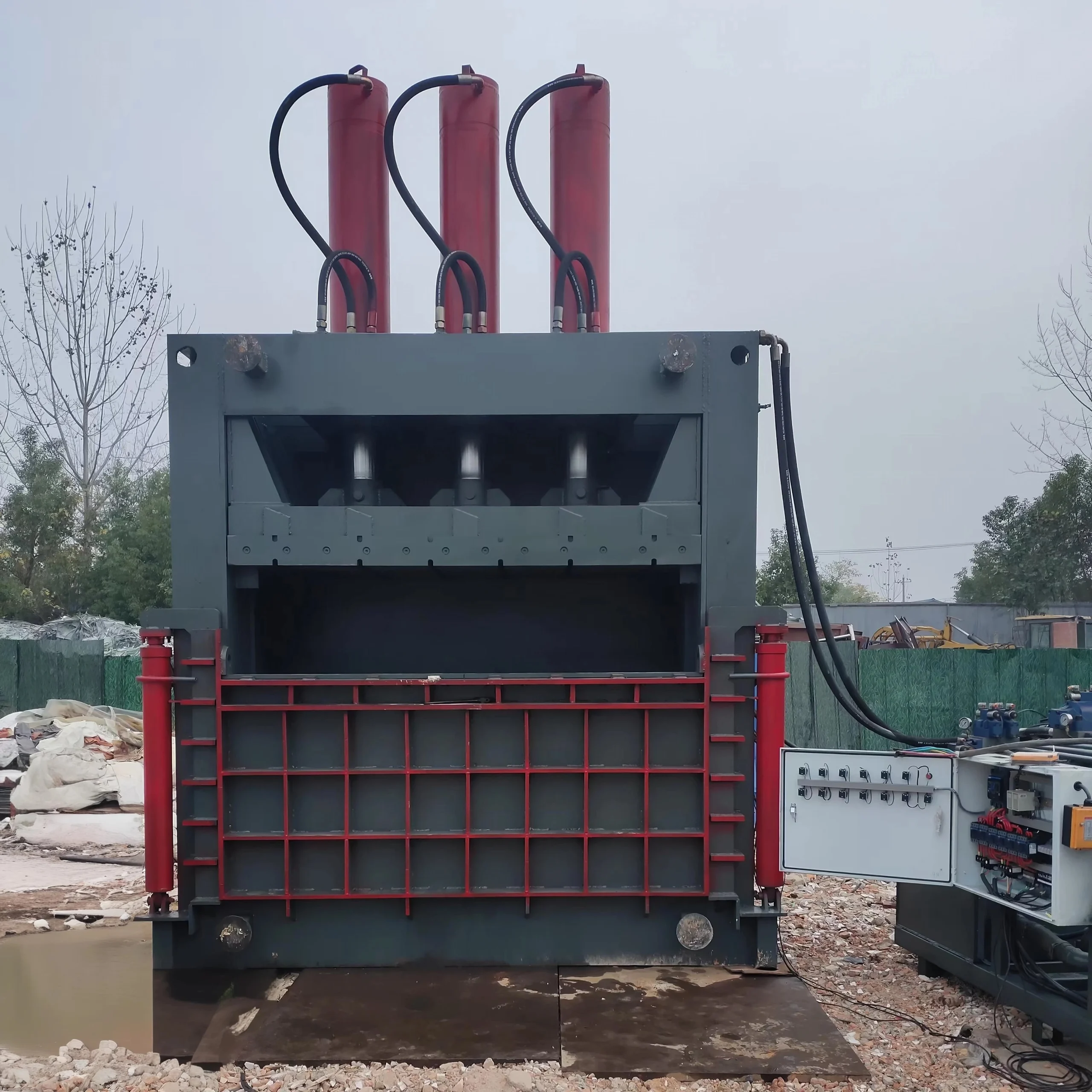

Product Overview:
Our 350T thick steel plate hydraulic baler is built for large-scale, high-intensity industrial waste processing. With extremely strong compression force, high capacity and high density bales, it massively reduces waste volume and saves huge cost for logistics and storage. This ultra durable machine ensures stable performance under long working hours, making it the top choice for large recycling centers and factories.

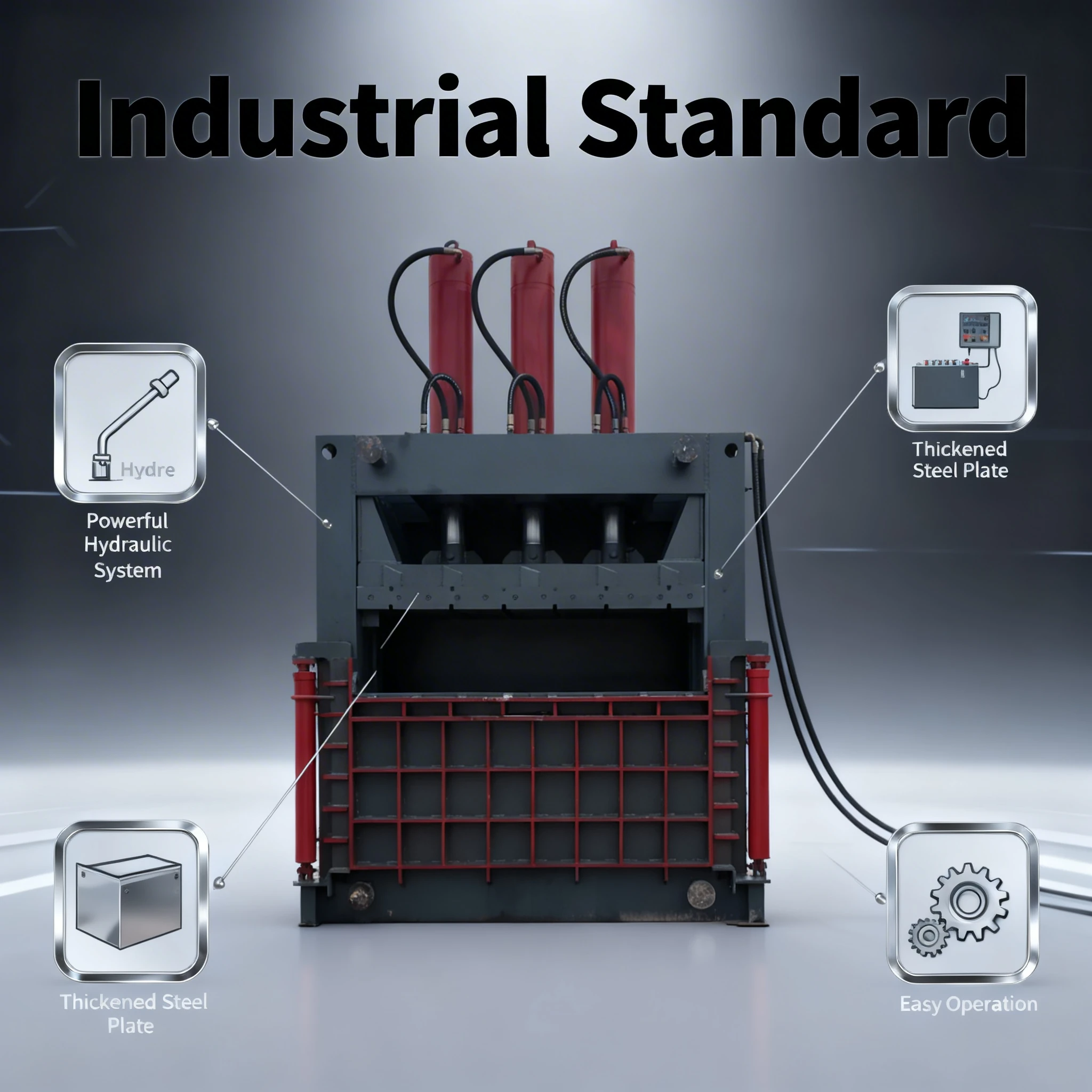

Key Features
-
Ultra-strength full steel plate body: Heavy-duty, durable and unbreakable, suitable for long-term high-intensity use
-
350T strong compression force: Powerful pressure, high compaction efficiency, dense waste bales
-
Automatic lifting door: Easy feeding and smooth bale output, labor-saving and efficient
-

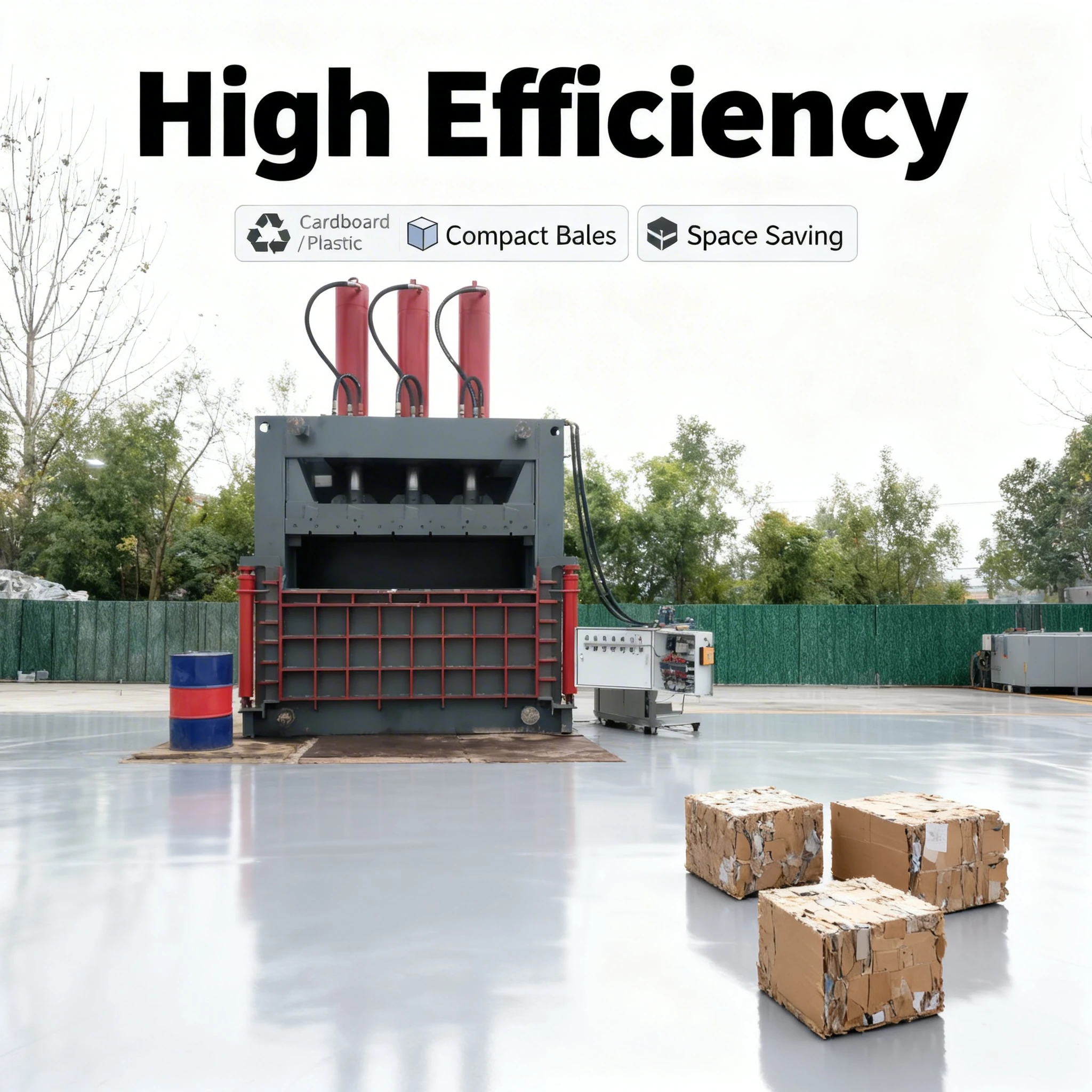

High packing efficiency: Fast compression cycle, large daily processing capacity
-
Wide application: Ideal for waste plastic, cans, metal beverage cans, irregular metal scraps
-

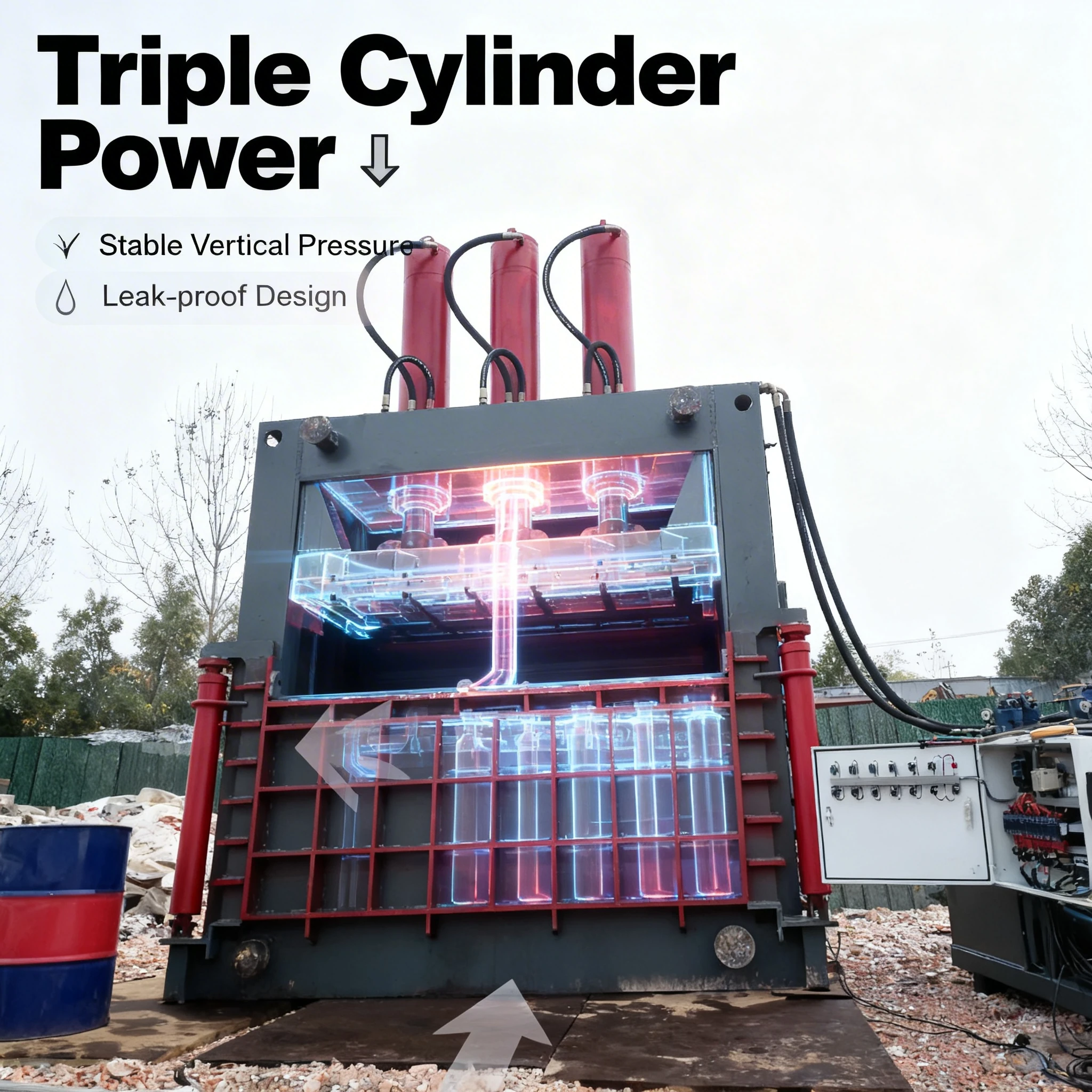

Stable hydraulic system: Low noise, few failures, long service life
-
User-friendly design: Simple operation, easy to master and maintain
Application Materials
– Large quantities of waste cartons, cardboard, corrugated paper, packaging materials
- Thick plastic sheets, large plastic products, industrial plastic scraps
- Heavy scrap metal, iron sheets, aluminum profiles, special-shaped metal wastes
- Industrial bulky waste, textile waste, household large waste
- Various high-density and heavy waste materials
– Other compactable non-ferrous metal and plastic recyclable waste
Why Choose This 350T thick steel plate hydraulic baler ?
Our large balers are designed for heavy-duty continuous operation, with super strong compression capacity and excellent stability, which can meet the high-intensity waste treatment needs of large enterprises.
FAQ
Q: Is this large baler suitable for heavy industrial waste compression?
A: Yes, it is specially designed for heavy-duty and large-volume industrial waste treatment.
Q: What is the production capacity of the large vertical hydraulic baler?
A: It can produce 10-20 bales per hour, suitable for large-scale waste recycling operations.
Q: Do you provide overseas installation and training services?
A: Yes, we can arrange professional engineers to provide overseas installation and operator training services.
Q: Does it have long service life?
A: Yes, with heavy duty structure and premium components, it ensures ultra long life.
Contact Us
If you need a high-performance 350T thick steel plate hydraulic baler for heavy-duty waste recycling, please send us your detailed requirements. We will provide you with the best quotation, customized solution and comprehensive after-sales guarantee.
